WebView User Manual
Timetable resource selection
Previous
Group selection
Introduction
To view a timetable you must let the system know which groups you wish to see in this timetable.
First select one or several groups of choice and then click one of the timetable display buttons, for example: 'Calendar Timetable', which then renders and opens the timetable.
Here follows an explanation on the various ways of selecting groups.
Tip: You can combine different kinds of items in the same timetable.
- For example: you want the timetable of a group and a room.
- First you select the group, then you click the Room tab, select the room and finally click the display button to open the timetable.
Steps

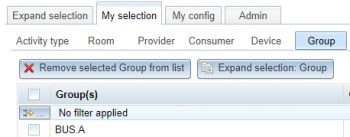

- Click the 'My selection' tab and then the Group tab.
- A list of groups appears below.
- Tick the boxes to select the groups you want to see in the timetable.
Select all

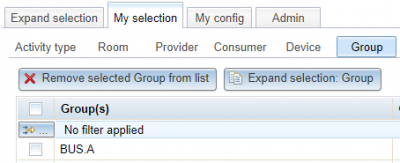

Tick the box at the top left to select all the groups at once.
Deselect all
Untick the box at the top left to deslect all the groups at once.
Remove Groups from the selection
First tick the boxes of groups you wish to remove and then click the 'Remove selected Group from list' button.

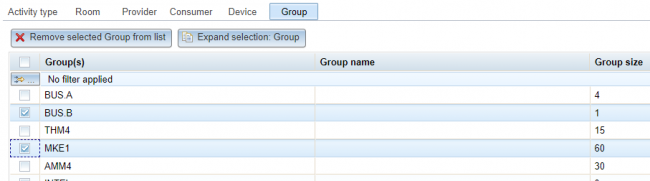

For example: in the figure the user wishes to remove BUS.B and MKE1 from the selection.

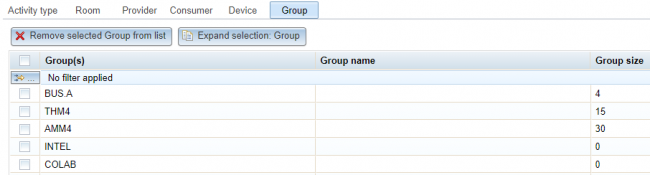

In the figure the groups BUS.B and MKE1 are no longer visible in the selection.
Tip: If you removed a group by mistake you can recover it by using the 'Expand selection: Group' button.
Quickly select multiple groups
- Place the mouse on the box of first group you wish to tick.
- Keep the left mouse button pressed.
- Drag the mouse down to the box of the last group you wish to tick.
- You see the boxes of groups you selected are ticked.
- When you release the mouse button the boxes remain ticked.
Expand selection
Click the 'Expand selection: Group' button to get to the 'Expand selection', Group tab. You can now add groups to the selection.
See explanation in Expand group selection.
Sorting buttons
If the groups list is very long it becomes more difficult to find a particular group.
Labels such as 'Group name' and 'Group size' function as sorting buttons that enable you to sort in alphanumeric order.
In the figure the user has clicked the 'Group size' label and the groups are in alphanumeric order of group types, from 4 to 560.
The small triangle is facing up.
- Tip: Click the 'Group types' label once more in order to sort the groups in reverse alphanumeric order of device types, from 560 to 4.
- The small triangle is facing down.
Filter buttons
If the list of groups is very long even the sorting buttons might not help you to find particular groups.
Click the filter button at the top left or the second row from the top of a specific column (see green arrows in figure) in order to open a form in which you can filter explicitly.
In the figure the user has clicked the filter button of the 'Group size' column and has entered a filter request in the form: The column 'Group size', with search condition is and value 50, in order to find all groups with size 50 participants.
Click the Filter button in the form for the system to execute the filter request.

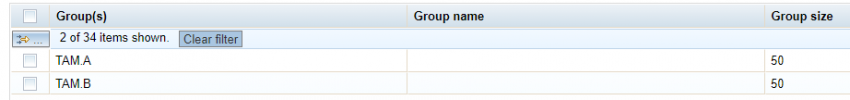

In the figure the system answers: '2 of 34 items are shown' and now only displays groups of size 50 participants.
Click the Clear button in the form to begin a new filter.
Click the Cancel button in the form to undo a filter.
Tip: Besides filter condition is you can also filter with: contains, 'starts with', 'ends with', 'does not contain', 'is not', 'does not start with', 'does not end with' and 'is empty'.
Tip: If the form is no longer open you can click the 'Clear filter' at the top left to undo the filter request.
Tip: If you use the filter icon at the top left then it will filter for matches in all columns.
Warning: Be sure to click the 'Clear filter' button when no longer needed otherwise your timetable might be missing items.
