WebView User Manual
Timetable resource selection
Previous
Provider selection
Introduction
To view a timetable you must let the system know which providers you wish to see in this timetable.
First select one or several providers of choice and then click one of the timetable display buttons, for example: 'Calendar Timetable', which then renders and opens the timetable.
Here follows an explanation on the various ways of selecting providers.
Tip: You can combine different kinds of items in the same timetable.
- For example: you want the timetable of a provider and a room.
- First you select the provider, then you click the Room tab, select the room and finally click the display button to open the timetable.
Steps
- Click the 'My selection' tab and then the Provider tab.
- A list of providers appears below.
- Tick the boxes to select the providers you want to see in the timetable.
Select all
Tick the box at the top left to select all the providers at once.
Deselect all
Untick the box at the top left to deslect all the providers at once.
Remove Providers from the selection
First tick the boxes of providers you wish to remove and then click the 'Remove selected Provider from list' button.
For example: in the figure the user wishes to remove Riana and Caroline from the selection.
In the figure the providers Riana and Caroline are no longer visible in the selection.
Tip: If you removed a provider by mistake you can recover it by using the 'Expand selection: Provider' button.
Quickly select multiple providers
- Place the mouse on the box of first provider you wish to tick.
- Keep the left mouse button pressed.
- Drag the mouse down to the box of the last provider you wish to tick.
- You see the boxes of providers you selected are ticked.
- When you release the mouse button the boxes remain ticked.
Expand selection
Click the 'Expand selection: Provider' button to get to the 'Expand selection', Provider tab. You can now add providers to the selection.
See explanation in Expand provider selection.
Sorting buttons
If the providers list is very long it becomes more difficult to find a particular provider.
Labels such as 'Provider code' and 'Provider types' function as sorting buttons that enable you to sort in alphanumeric order.

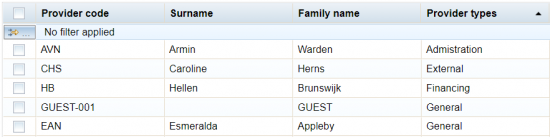

In the figure the user has clicked the 'Provider type' label and the providers are in alphanumeric order of provider types, from a to z.
The small triangle is facing up.
- Tip: Click the 'Provider types' label once more in order to sort the providers in reverse alphanumeric order of provider types, from z to a.
- The small triangle is facing down.
Filter buttons
If the list of providers is very long even the sorting buttons might not help you to find particular providers.
Click the filter button at the top left or the second row from the top of a specific column (see green arrows in figure) in order to open a form in which you can filter explicitly.
In the figure the user has clicked the filter button of the 'Provider type' column and has entered a filter request in the form: The column 'Provider types', with search condition contains and value gen, in order to find all providers with gen in the name of the Provider types.
Click the Filter button in the form for the system to execute the filter request.

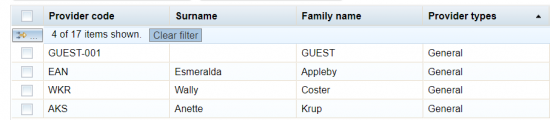

In the figure the system answers: '4 of 17 items are shown' and now only displays providers with General Provider types.
Click the Clear button in the form to begin a new filter.
Click the Cancel button in the form to undo a filter.
Tip: Besides filter condition contains you can also filter with: is, 'starts with', 'ends with', 'does not contain', 'is not', 'does not start with', 'does not end with' and 'is empty'.
Tip: If the form is no longer open you can click the 'Clear filter' at the top left to undo the filter request.
Tip: If you use the filter icon at the top left then it will filter for matches in all columns.
Warning: Be sure to click the 'Clear filter' button when no longer needed otherwise your timetable might be missing items.
